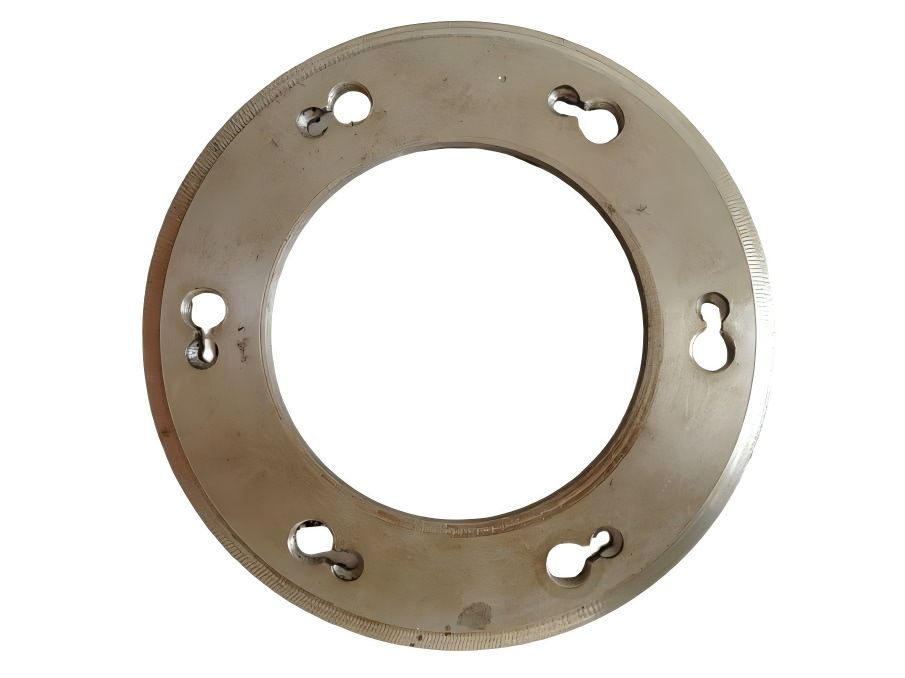

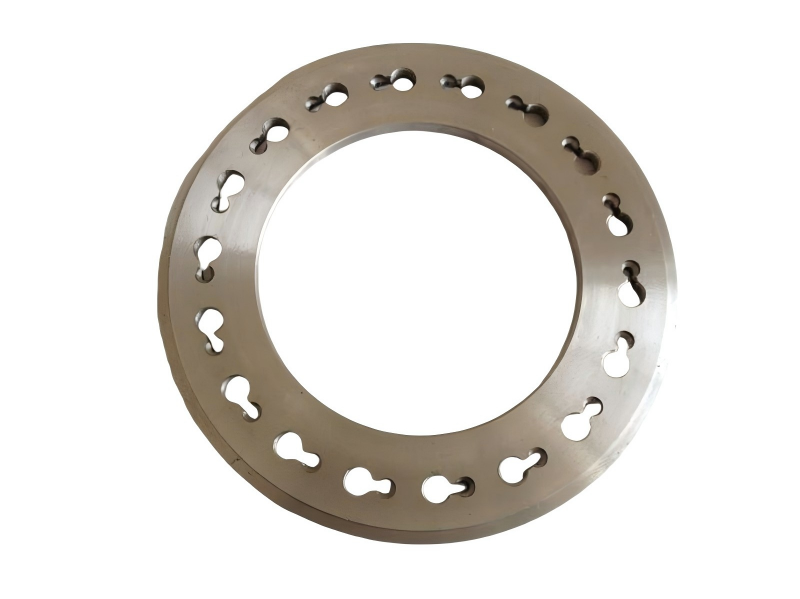

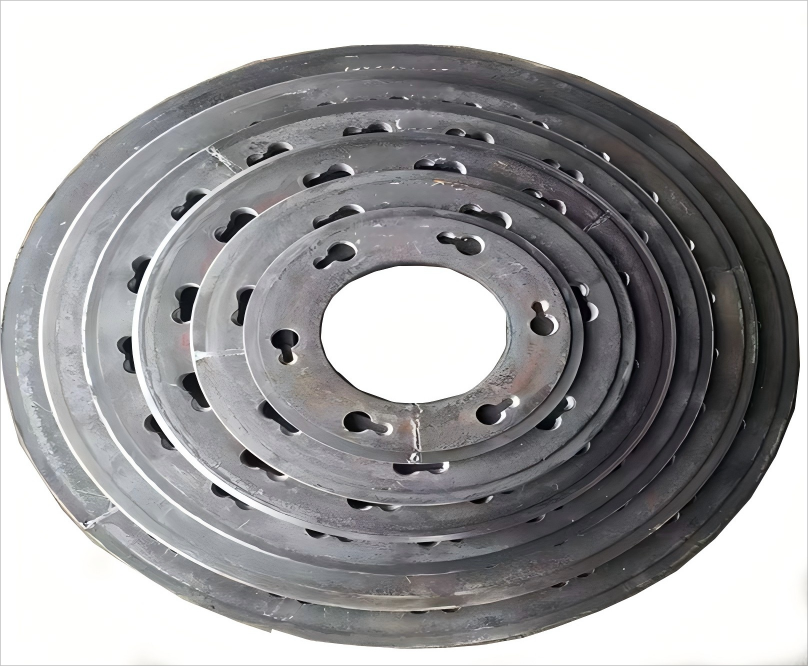

Large diameter 1200-1000 high carbon steel prestressed pipe pile end plate
- Min.Order Quantity：50TON
- Outer diameter：1200mm-300mm
- Inner diameter：720mm-180mm
- Thickness：25mm-12mm
- Shape：Round
- Materials：Q235,High carbon steel，Stainless steel
Description
Steel end plates are essential components in various engineering and construction applications. They play a crucial role in providing structural support and ensuring the stability of different assemblies.
Most of the pipe pile end plates are made of high carbon steel such as Q235 as raw materials, which have outstanding performance in strength, durability and cost-effectiveness. In environments with high requirements for corrosion resistance, stainless steel will be the first choice.
The shape and size of the end plate is usually designed according to the specific requirements of the project, and the thickness can vary greatly depending on the loads it needs to withstand. Thicker end plates are suitable for heavier loads, while thinner end plates are suitable for lighter structures. End plates are often pre-wired or slotted for bolt or wire connections. These designs facilitate easy mating and guarantee re-fitting between different structural elements.
The outer diameter of the end plates we produce ranges from 1000 to 300mm, and the thickness ranges from 25 to 12mm. The main specifications are: 1000*720*25, 1000*720*22, 800*560*22, 800*560*19, 600*400*16, 600*400*12, 500*320*16, 500*320*12, 450*290*12, 400*250*12, 350*220*12, 300*180*12. It can be customized according to customer requirements.
